Reliable quality measurement with savings effec

Reliable quality measurement with savings effec

Water treatment usually consists of several processes, some of which are costly. Raw water is purified in order to provide consumers with clean and safe drinking water. Water suppliers sometimes have to accept high operating costs in order to achieve the desired drinking water quality. At the same time, consumers want to pay the lowest possible price for water. Suppliers can therefore only control their process costs through optimized treatment.

In the following example, we show how our solutions lead to efficient water treatment while maintaining the necessary quality.

The Solution

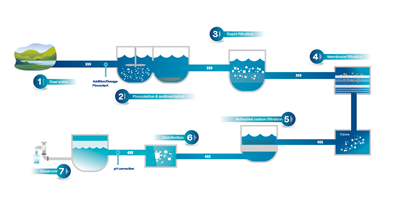

Sigrist offers quality and process control for each process step in water treatment using the appropriate photometers. Based on a typical surface water treatment plant, this consists of seven steps:

  1. Raw water catchment
  2. Addition of flocculant and sedimentation
  3. Rapid filtration
  4. Membrane filtration
  5. Activated carbon filtration after treatment with ozone
  6. Disinfection
  7. Reservoir and network feed

Typical Application

A medium sized waterwork pumps 1 million m³ of water per year. The price of drinking water is 1.5 CHF/ m³. The suppliers do not operate on a profit-oriented basis, but on a cost-covering basis.

The Customer Benefit

AN_Waterworks_Graph_EN
  • Controlled flocculant dosing using turbidity mea surement can save a waterworks almost CHF 1000 per year.
  • Monitoring the filters with turbidity and flow rate (or alternatively pressure drop) can save CHF 25‘000 per year. The filters are only flushed as required, which reduces water and energy costs.
  • Regenerating an activated carbon filter is very energy-intensive. The activated carbon is cleaned in a multi-stage process. Temperatures of up to 800°C are required. The filter service life can be optimized by measuring SAK 254 after filtration.

It is estimated that annual costs of CHF 2000 can be saved.

  • During the disinfection step - especially when using UV light - the control of the input turbidity ensures that cleaning intervals are extended. This can save several thousand CHF per year because the service life of the lamps is extended. → Overall, the operating costs of the waterworks are reduced by at least CHF 35‘000 per year!

Technical Details

What makes our devices stand out:

  • High accuracy; also enables control of critical process steps with the smallest change in measu red value.
  • We do not offer a measuring device, but a measu ring solution!
  • The standard version already includes 2x analog signal outputs, various digital signal outputs and Modbus TCP communication. This enables the customer to design a variety of flexible solutions.
  • The low power consumption of our devices com bined with the low maintenance requirements reduce the operating costs for operators to a minimum

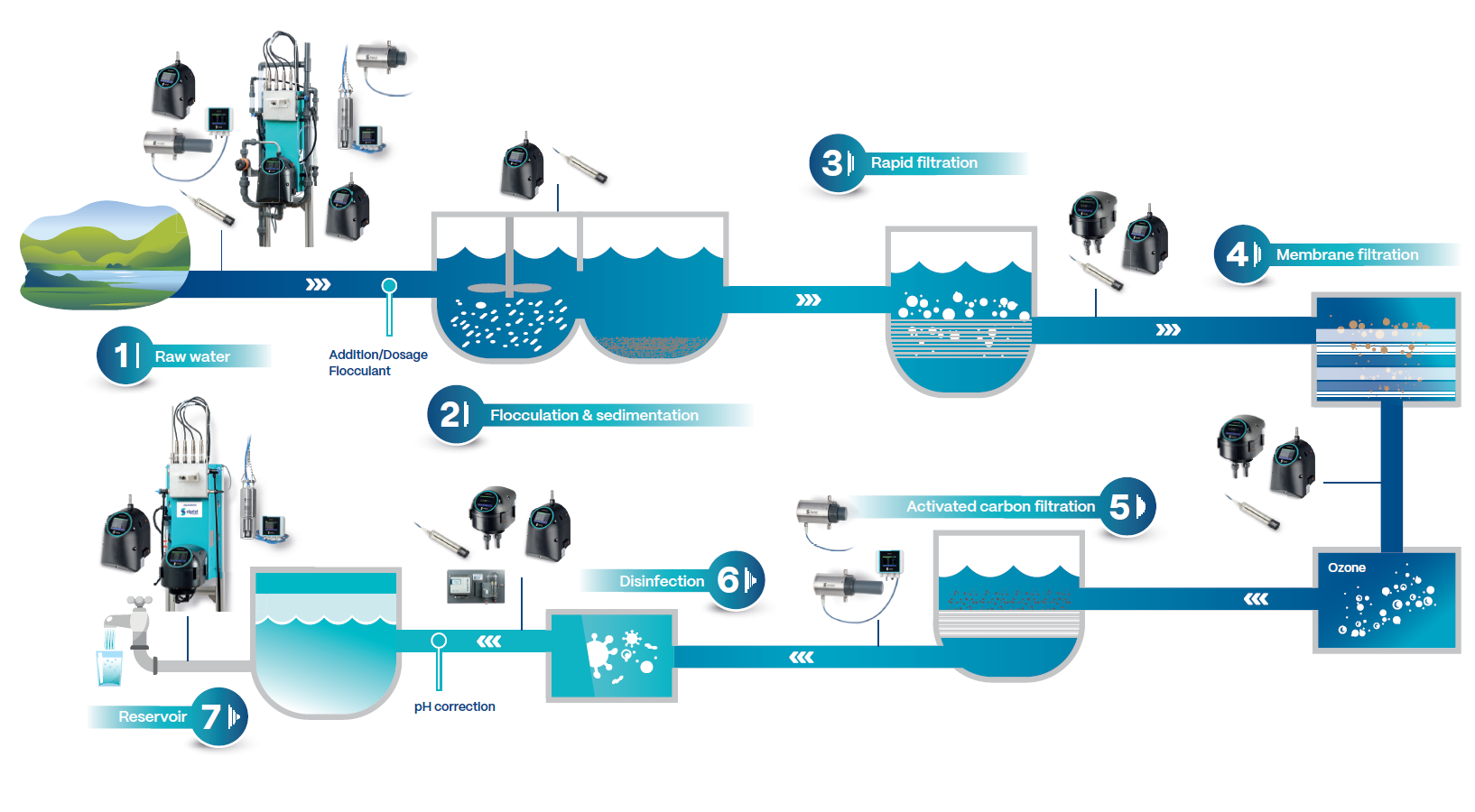

AN_Waterworks_Process_EN
AN_Wasserversorgung_Geraete
AquaGuard PR 30
AquaGuard PR 30 The AquaGuard PR 30 measures up to five parameters directly in the water - without the use of expensive pumps and with zero water loss! The portable measuring system consists of an Aqu…
More Info
ColorPlus 3 Nitrat
Nitrates are nitrogen compounds that occur naturally in the soil, but also enter the soil as a component of fertilizers. Even a small amount of nitrate in drinking water can pose a health risk! Sigrist ColorPlus 3 offers you online measurement of nitrate
More Info
OilGuard 2 W
The instrument is used for monitoring oil traces in raw, surface, process and waste water. As a result of the non-contact free-fall measurement, there are no reading falsifications arising from window soiling and there is an extremely low need for maint
More Info
ColorPlus 3 SAK 254
UV absorption is an indicator of water pollution by certain dissolved organic substances, such as aromatic compounds or humic substances from the soil. Sigrist ColorPlus 3 offers you online measurement of UV Absorption with optional colour measurement. A
More Info
AquaScat S
In-line turbidity measurement for water treatment The AquaScat measures the turbidity of potable water according to IEC 27027 and the temperature, with the measurement carried out directly in the wate…
More Info
AquaMaster
AquaMaster is a compact measuring system for the following parameters: turbidity, pH, conductivity, Redox, dissolved oxygen and temperature. The various parameters can be combined individually. The colour touch screen of the AquaScat is the central cont
More Info
AquaScat 2 WTM
The AquaScat measures turbidity of potable water according to IEC 27027 using 90+° scattered light detection in a free-falling water stream. This contactless design eliminates window foiling and minimizes servicing to a minimum. Calibration check is perfo
